Zephyr - Padák pre DJI Matrice 30 (Circuit Breaker)
The lightest parachute system on the market: only 330g !
The basic parachute kit includes an ultra-fast CO2 canvas ejection system as well as a dedicated autonomous remote control with 30 hours of autonomy (to be attached to the Smart Controller).The parachute is also available as a DGAC S1 S2 S3 approved kit with an external FTS (to be installed by yourself). Each version of the FTS includes an audible alarm and a charging socket to power and charge the parachute when the drone is switched on and thus obtain unlimited autonomy.
The lightest parachute system with motor cut-off in the world !

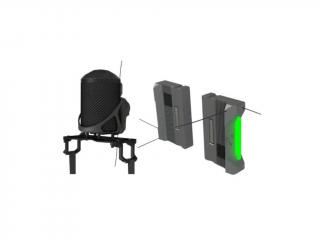

The parachute + external FTS kit is the lightest solution available on the market, with a total weight of only 385g. Pilots have the possibility to carry more than 500 grams of payload, in addition to our safety systems, while still complying with the DGAC S2-S3 approval (total weight of 4.7 KG in flight). The S1/S2/S3 approval proposed by Dronavia is the only one on the market that allows for the carrying of payload. Note that for an equivalent payload, the flight time is longer with the Zéphyr parachute than with another parachute system. The external FTS is installed between the batteries and the drone by yourself. The operation is reversible, it does not modify the drone and allows to keep the DJI manufacturer warranty. The FTS can be used alone, without a parachute, to increase the available payload and flight time for the S2 scenario.The payload of the Matrice 30 in the S2 scenario increases to 960 grams in this configuration ! The audible alarm module is connected to the USB-C socket on the underside of the drone.
A very quick installation of the system
Fixed on the 4 upper screw threads of the drone, the parachute can be disassembled in less than a minute, without having to go to the workshop. An optional bracket is available in our shop to attach it to the underside of the drone when using the upper pod. The kit with the FTS can also be disassembled in seconds. The fuse module is simply inserted between the batteries and the drone. It directly includes the audible alarm. It weighs 55 grams.
The fastest, most reliable and most efficient CO2 system
The CO2 ejection system of Zéphyr parachutes has been tested and used by a majority of French drone pilots for more than 5 years. Numerous tests and successive improvements have brought this system to levels of reliability never before achieved on a drone parachute. The pressurised gas (60 bars!) is released in a fraction of a second to propel the parachute fabric out of its container. The excess gas released (each cartridge contains several dozen litres) is used to accelerate the deployment of the canopy and minimise the loss of altitude when the parachute is triggered. The system can be reset in a few seconds. The CO2 cartridge is the only consumable to be changed on the system after a deployment and a cartridge costs only a few euros. There are no constraints for professional pilots travelling by air. Most airlines offer the possibility to put your Zéphyr M30 system in the hold or in the cabin with the 4G gas cartridge.
On the Zéphyr M30 dual canopy parachute system, the CO2 ejection system allows the canopies to be ejected and opened in just 0.83 seconds, which corresponds to a 10m loss of altitude from an initial fall speed of approximately 6m/s.
The lightest, most stable and most efficient drone canopies
The new PARA² canopies used in Zéphyr parachute systems are the result of 3 years of development. Their innovative ultra-lightweight design and unique construction give PARA² canopies superior efficiency and stability. On single canopy systems, the drop rate is minimised in relation to the canopy surface. When used in pairs, PARA² canopies do not interfere with each other and optimise the overall sink rate. Each Zephyr parachute is designed so that the canopy(s) keep the drone as flat as possible during its fall in order to minimise damage on impact.
On the Zéphyr M30 parachute system with two canopies, the fall speed for a mass of 4.2 kg is only 5 m/s, i.e. an impa
- Obchod: Drony | Akčné kamery | Stabilizátory | DroneRepublic.sk
- Zaradenie: Drony | DJI Enterprise | DJI M30 | Príslušenstvo pre DJI M30
- Výrobca tovaru: Dronavia
- Dostupnosť tovaru: skladom
- Aktualizované: 16.2.2024
- Cena: 2 299.00 Eur
